How does Rotax DD2 work

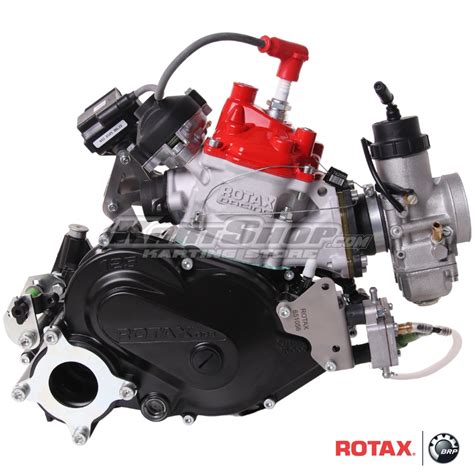

The Rotax DD2 is basically a 125cc two-stroke kart engine that throws out the whole centrifugal clutch idea. Instead of letting the engine sit there idling while you're stopped, like normal karts do, this thing is locked tight to the rear axle through a rigid clutch and gearbox. So you—the driver—have to handle all the engine engagement yourself using the throttle and a manual clutch lever. Makes for a way more direct, harder driving experience. "DD2" stands for "Direct Drive 2," named after its dual-plate clutch setup and that fixed connection to the drivetrain.

What makes the Rotax DD2 different from a standard kart engine?

Standard kart engines run on a centrifugal clutch. When you're idling, those clutch shoes just spin free, and the kart doesn't move. Then you hit the throttle, clutch grabs, off you go. The DD2? None of that. It runs a dry multi-plate clutch that's always engaged while the engine's running. Meaning at idle, the engine's still trying to turn those wheels. So you gotta pull the clutch lever to disconnect things, pick a gear, then let the lever go while giving it gas. This gives you instant power and forces you to actually manage the engine's power band like a real driver.

How does the Rotax DD2 gearbox and clutch system function?

The DD2 uses a sequential 6-speed gearbox with dog-ring engagement. The clutch is dry and has two plates. Here's how it all works:

• Starting: Pull that clutch lever all the way in—that disconnects the engine from the gearbox. Then you fire it up with the kart sitting still.
• Launching: Clutch still pulled, you paddle-shift into first gear. Then you slowly release the clutch while feeding in throttle. The plates engage, and you're off.
• Shifting: To go up a gear, you blip off the throttle (or use a flat-shift if you've got one), pull the clutch, push the shift paddle forward. The dog rings pop out of the current gear and into the next. Let the clutch back out. Downshifting's pretty similar, but you'll usually blip the throttle to match revs.
• Stopping: Pull the clutch to disconnect the engine, hit the brakes. You can keep the engine running while stopped as long as you're holding that clutch in.

This whole thing demands you're real smooth with the throttle and clutch, especially pulling away or in slow corners.

What are the performance characteristics of the Rotax DD2?

You're looking at about 34 horsepower at the crankshaft, with peak power between 12,000 and 14,000 RPM. Because it's direct-drive, there's no power lost through a centrifugal clutch—so the power hits harder and more immediately. That gearbox means you can keep the engine singing in its sweet spot longer, especially on tracks with mixed speeds. Most racing series put a restrictor plate on it to keep things fair. Here's how it stacks up against a standard Rotax Max:

Is the Rotax DD2 harder to drive than a standard kart?

Oh yeah, it's way harder—especially if you're new to this. That manual clutch and gearbox means you've got a whole new set of stuff to learn. You've got to figure out balancing the clutch with the throttle for clean launches, nailing the timing on upshifts and downshifts, and handling the engine braking when you drop a gear. Plus the direct-drive means the engine'll stall if you dump the clutch without enough gas. Experienced drivers tend to love the DD2 because you get more control and can tweak the kart's handling by picking the right gear. The learning curve is brutal, but once you get it, you're looking at a more engaging ride and maybe faster laps.

Common maintenance checklist for a Rotax DD2 engine

You've gotta stay on top of maintenance with the DD2—it revs high and that clutch system is complex. Here's what owners should check:

• Clutch inspection: Check the clutch plate thickness and wear every 5-10 hours of running. Swap them if they're below the service limit.
• Gearbox oil: Change it every 10 hours. Use the oil grade they tell you to.
• Chain and sprockets: Lube the chain before every session. Check for wear and tension. Replace sprockets once the teeth get hooked.
• Piston and cylinder: Inspect for scoring or wear every 20-30 hours. Swap the piston ring when needed.
• Carburetor: Clean it and check the jetting regularly—especially after changes in altitude or temperature.
• Spark plug: Replace every 10-15 hours. Check the gap and color to make sure the fuel mixture's right.
